External Size(MM): 2200W x 2200D x 2300H
Description: phone booth for 4～6 person
Material:
Finishes
1.External dimensions (mm): W2200*D2200*H2300
2.External steel plate: 0.8mm thick steel plate, electrostatic powder coating (with automotive vibration damping plate)
3.Intermediate material: steel frame+60mm thick sound-absorbing cotton；9mm PET acoustic panel (density: 2.0kg/m²),Noise reduction effect: Approximately 30dB
4.Internal finish:Original silk flame-retardant PET acoustic panel(Standard),Fabric finish wrapped over PET(Optional),Soundproof Structure;
5.Floor: 18mm thick board+5mm thick soundproof cotton, carpet * 1, adjustable legs * 8, casters * 8
6.Rear glass: 10mm tempered soundproof glass, black aluminum alloy frame
7.Glass door: 4+6mm tempered laminated soundproof glass, black aluminum alloy frame
Power & Accessories
1.Power configuration: CN/US/UK/EU/UNIVERSAL Voltage: 110-240V
2.Socket:switch panel*1 power socket*2, type-A * 1,type-C * 1
3.Ventilation fan * 4 (linked sensor): air volume 120m ³/H
4.Lighting: LED light (linked sensor), status light * 1 (optional), color temperature: 4000K
5.Cable: 3-meter power cord with 13A plug
6.Door hardware: stainless steel locks, handles, hinges, limiters
7.Furniture not included (Optional)

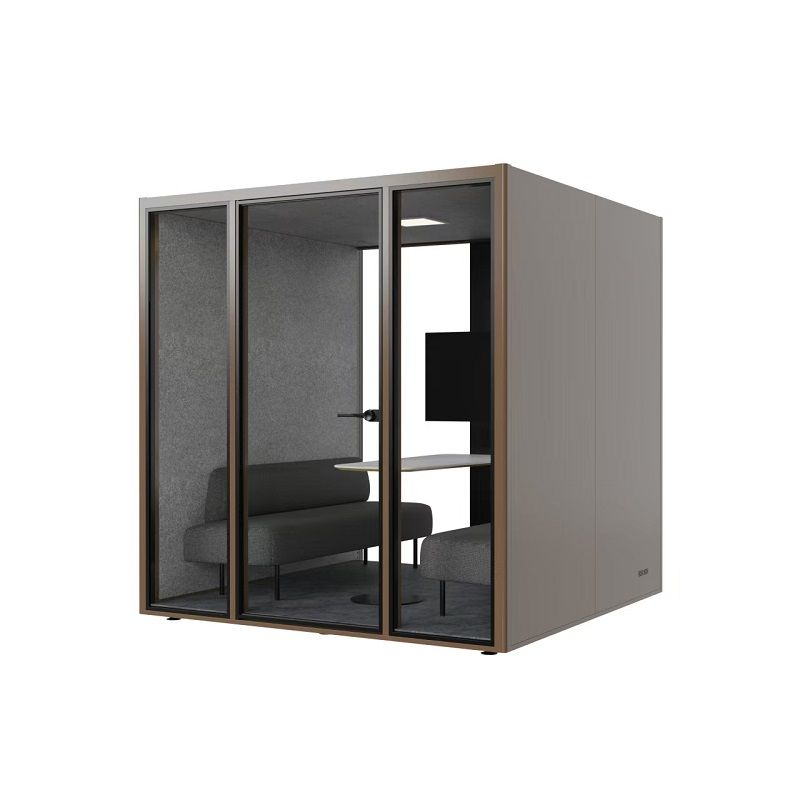

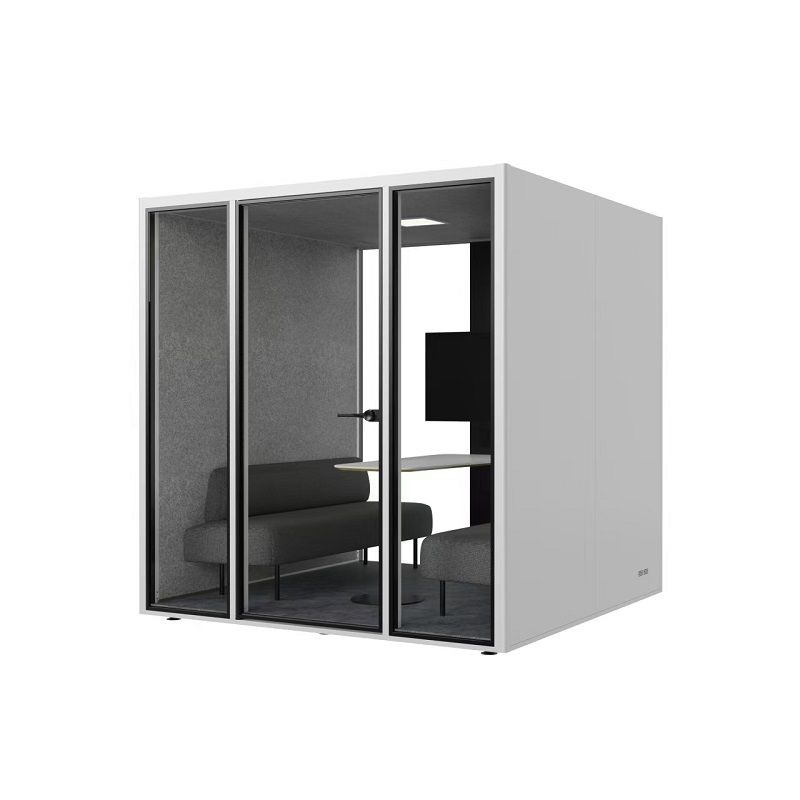

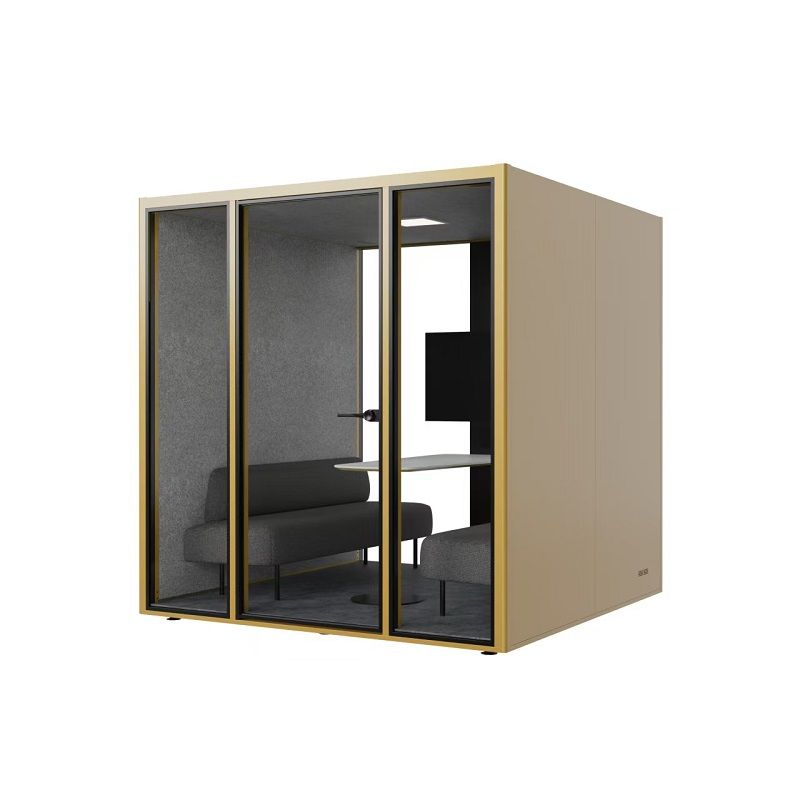

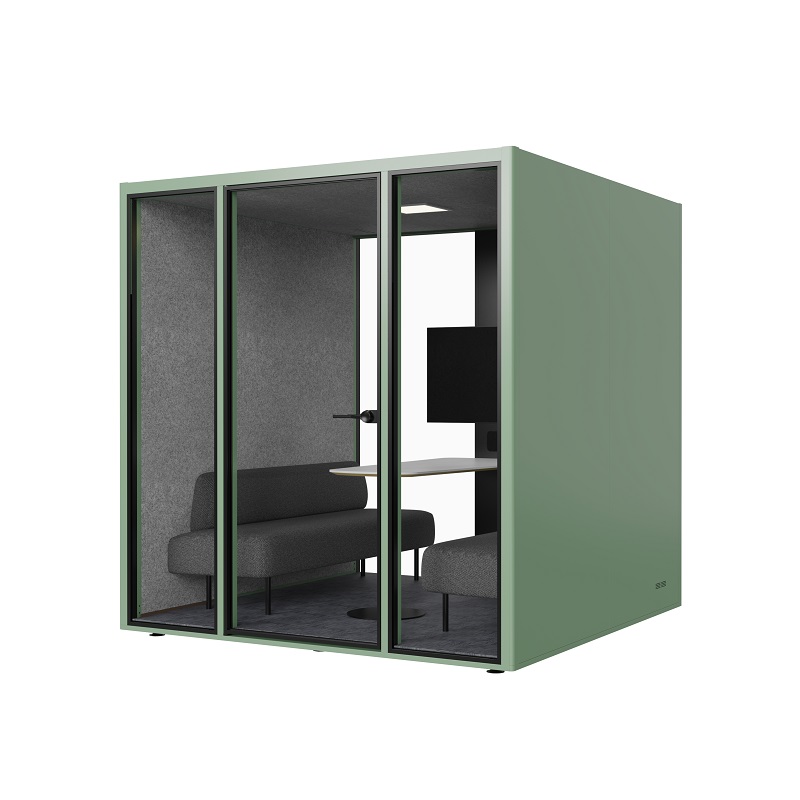

Color:
Sky Grey/Eco Grey

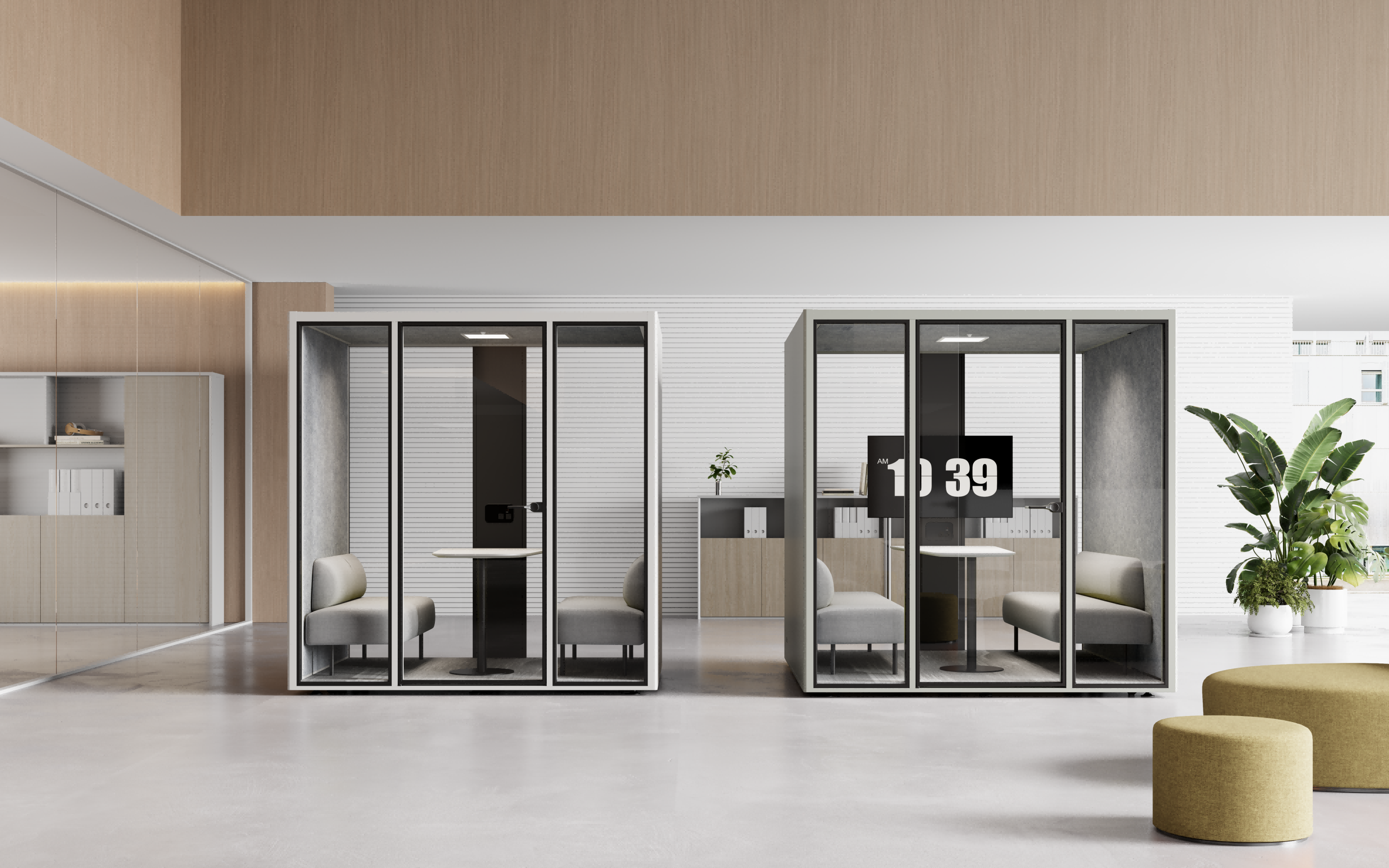

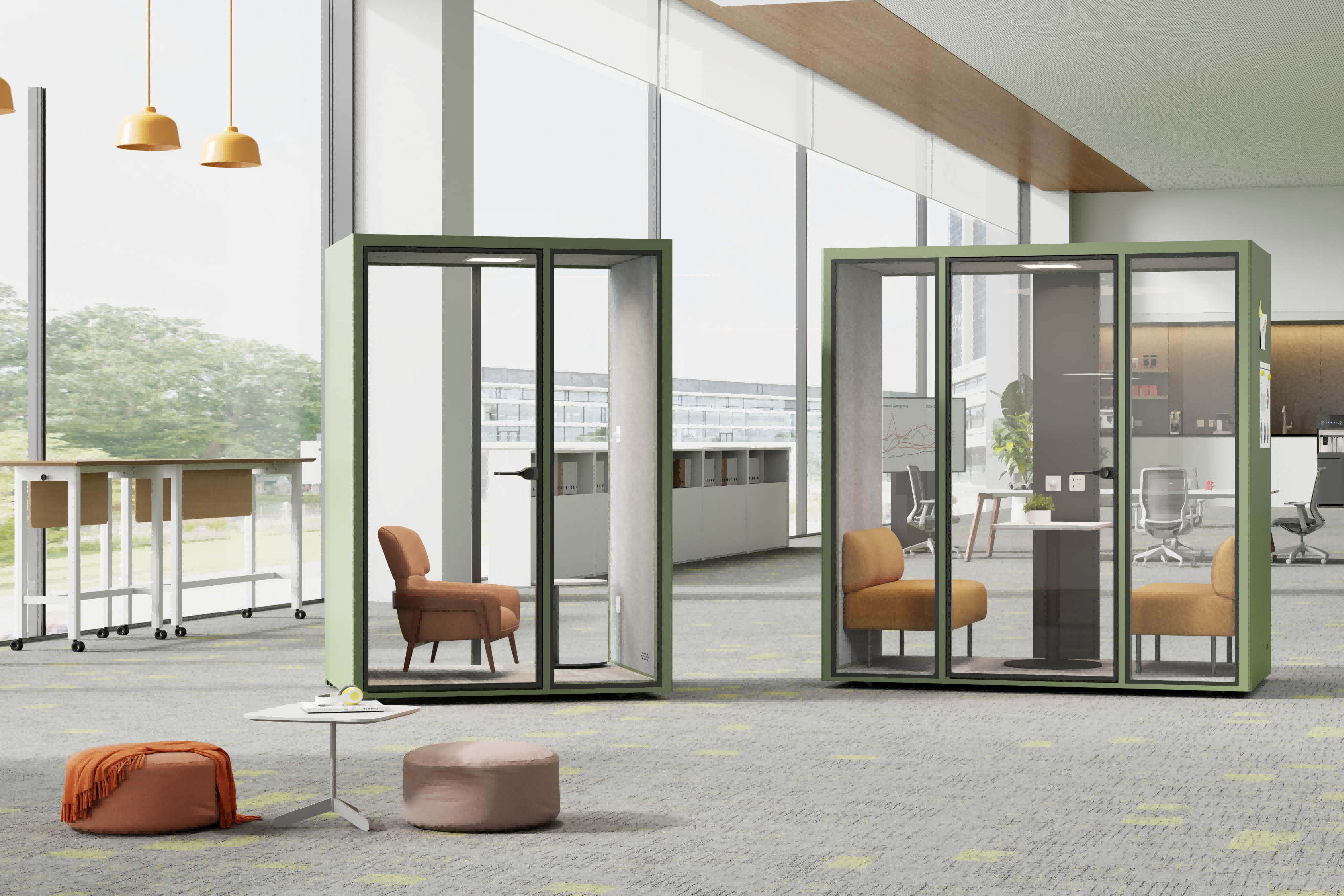

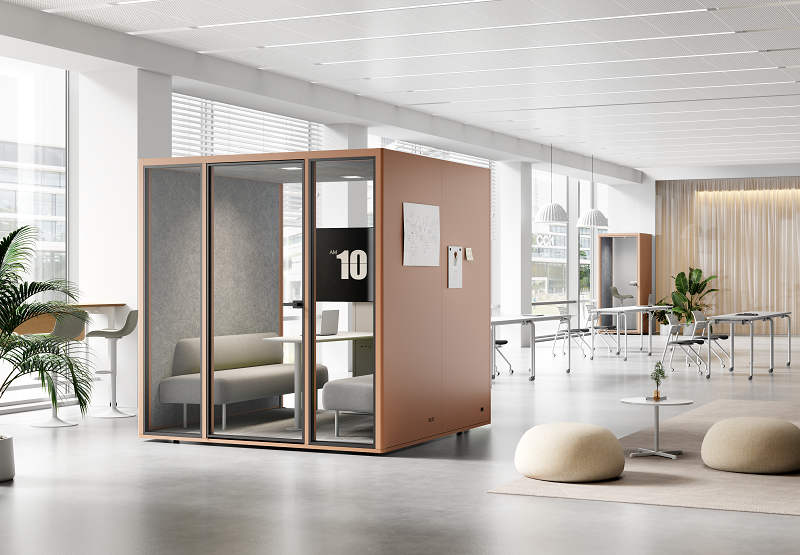

Soundproof Pods For Offices
Soundproof pods for offices provide an on-demand soundproof workplace, designed with individual work meetings and collaborative meetings in mind. They include comfortable seats, a table, hangers, two power sockets, and many optional accessories to create the perfect mini-office. They are fully removable, which means they can easily be moved from one side of the office to the other as needed. Smart LED lighting and ventilation fans ensure optimum comfort.
Design Concept
Soundproof pods for offices provide an on-demand soundproof workplace, designed with individual work meetings and collaborative meetings in mind. They include comfortable seats, a table, hangers, two power sockets, and many optional accessories to create the perfect mini-office. They are fully removable, which means they can easily be moved from one side of the office to the other as needed. Smart LED lighting and ventilation fans ensure optimum comfort.
The Pod is suitable for up to six people and is ideal for brainstorming, video conferencing or consulting.

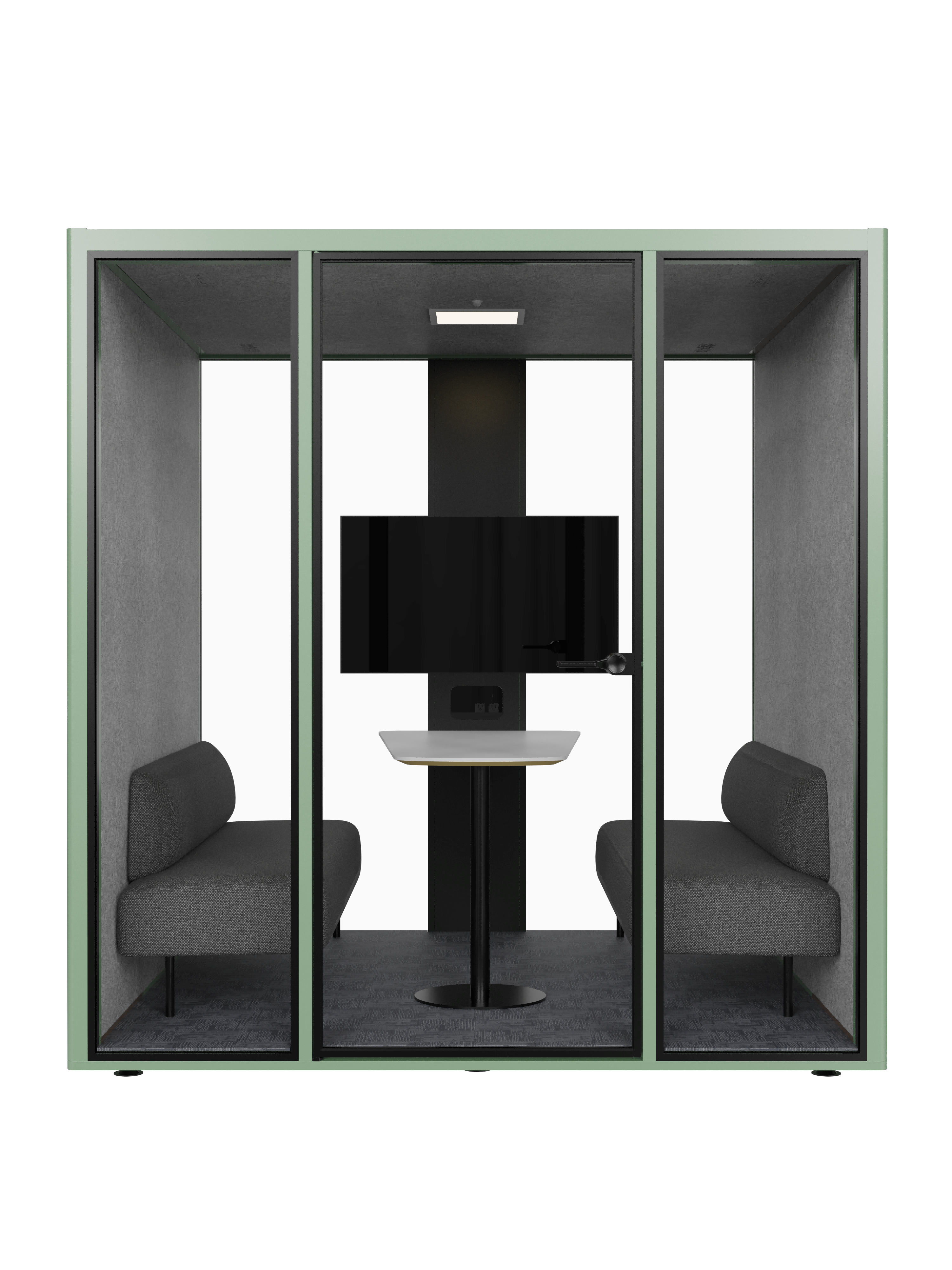

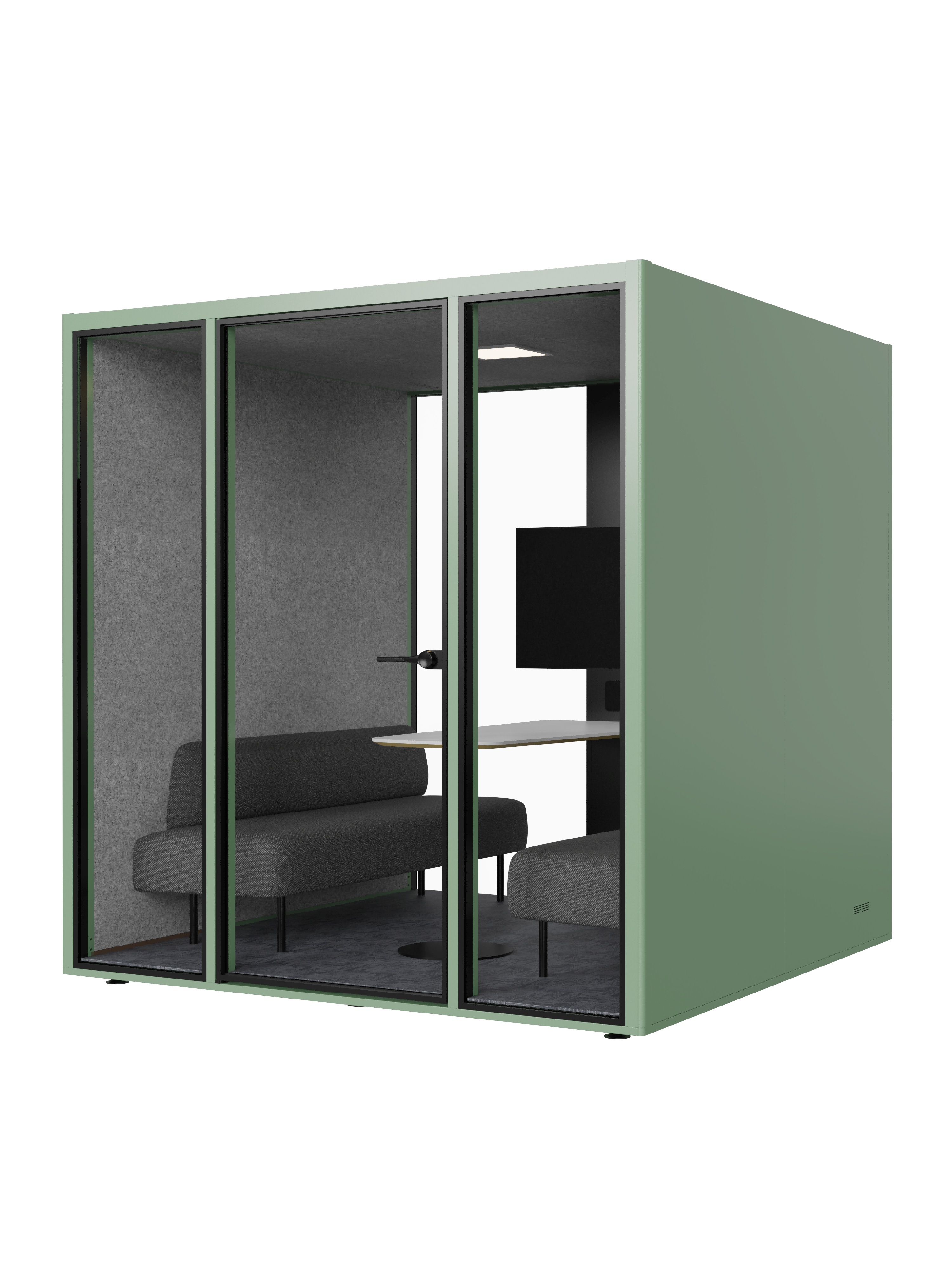

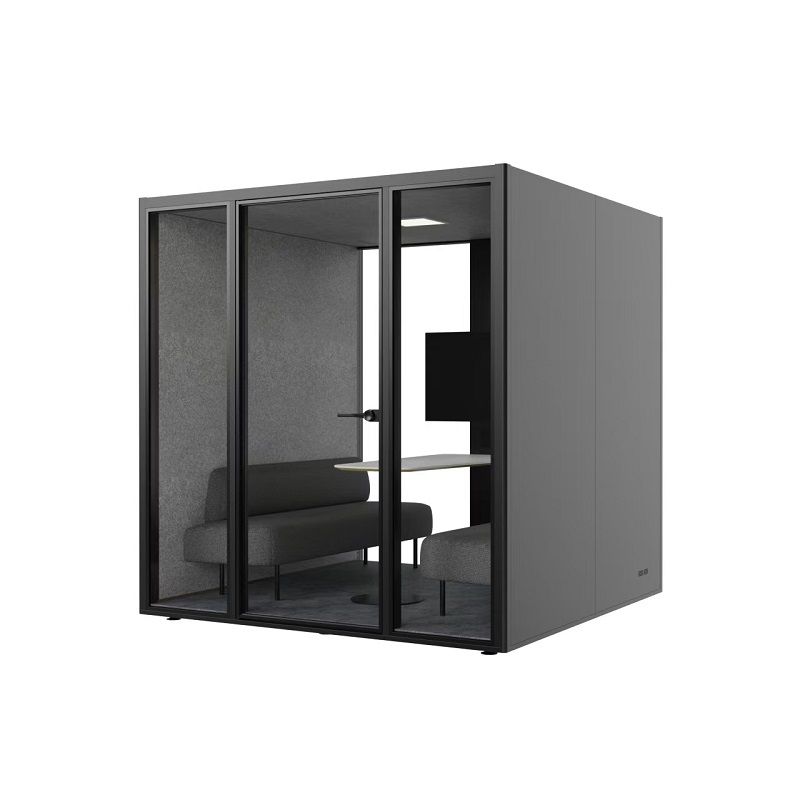

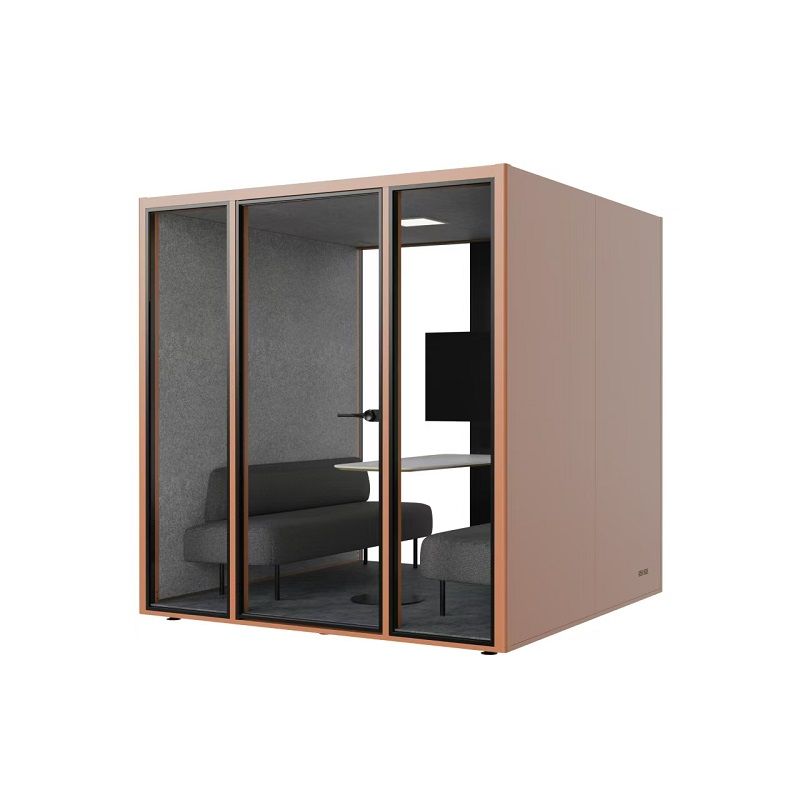

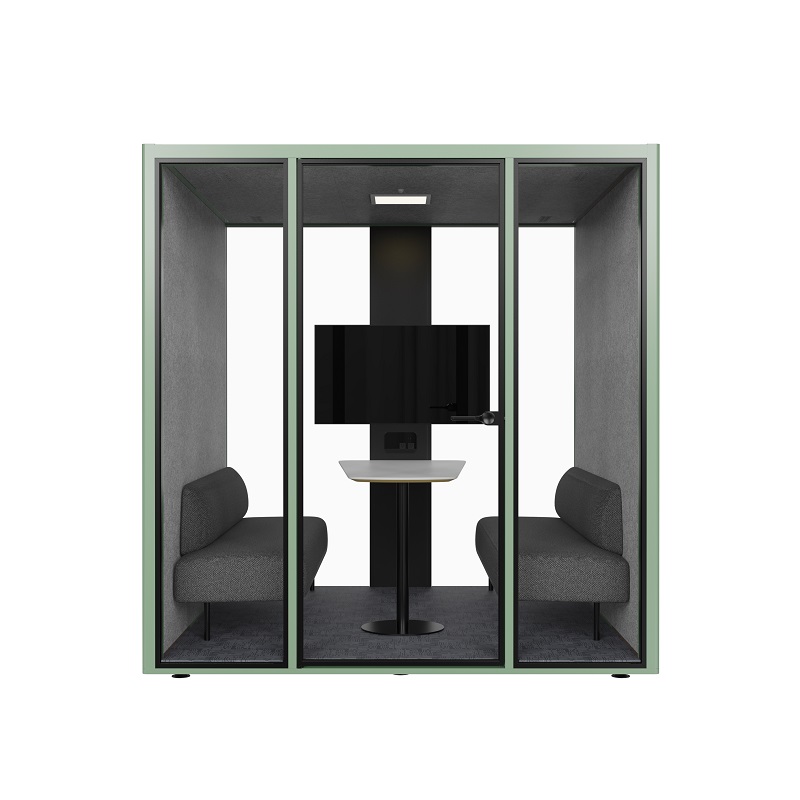

Soundproof Pods For Offices - L Size
Specifications
| External Finising | 0.8mm thick steel plate, electrostatic powder coating (with automotive vibration damping plate) |
| Internal Finishing | 9mm PET acoustic panel (density: 2.0kg/m²),Noise reduction effect: Approximately 30dB |
| Floor | carpet * 1, adjustable legs * 8, casters * 8 |
| Rear Glass | 10mm tempered soundproof glass |
| Glass Door | 4+6mm tempered laminated soundproof glass |
| Door hardware | German brand (ECO, GRIFF WERK) stainless steel lock, handle, hinges, and door closer. |
| Power | CN/US/UK/EU/UNIVERSAL Voltage: 110-240V |
| Charge station | switch panel*1 power socket*2 |
| Ventilation Fan | Ventilation fan * 4 |
| Lighting | LED light (linked sensor), status light * 1 (optio |
Detail Drawing
The soundproof office pods are enclosed soundproof walk-in furniture that creates quiet spaces for individual work and team meetings. soundproof pods for offices provide vital easy-access enclosed quiet rooms without the need to build permanent walls and fixtures. office pods are available in a variety of sizes, from small phone/video conferencing rooms, and mobile work and study pods to large conference rooms. All pods feature internal sound absorption and acoustic barrier properties and are upholstered in wool or optional anti-bacterial fabrics. Built-in air circulation, lighting, electrical and furniture provide pod users with everything they need for a quiet and safe work environment.
Quickly set up meeting rooms with soundproof pods for offices. Please leave contact information, our professional staff will contact you the first time!
